⚙️ Modbus Hub
🧠 Overview
Modbus Hub is a professional and educational Modbus TCP simulator,
featuring two standalone GUI applications built with PySide6 (Qt for Python) and pymodbusTCP.
- 🟦 MasterApp (Client) – connects to a Modbus TCP server, reads/writes registers in real time.
- 🟩 SlaveApp (Server) – simulates a Modbus TCP device with editable holding registers.
🧩 Key Features
| Component | Features |
|---|---|
| 🟦 MasterApp | Connect to Modbus TCP servers, read/write holding registers, define ranges, live refresh, connection LED, log panel |
| 🟩 SlaveApp | Simulated Modbus TCP server, editable registers, IP/Port configuration, live sync, server status LED, message log |
| 🧱 Shared Architecture | Modular structure, full input validation, friendly GUI built with PySide6 |
| 🧮 Protocol Compliance | Supports 65,536 registers, 125 registers per Modbus frame (standard limit) |
▶️ Usage
The project includes two standalone applications ready to run:
- Modbus Hub – Master (Client)
- Modbus Hub – Slave (Server)
Simply execute the provided file for your platform.
No installation or dependency setup is required.
💾 Executables
The binaries are distributed in compressed packages by platform:
| Platform | Package Name | Description |
|---|---|---|
| 🪟 Windows | ModbusHub_Windows_Binaries_v0.1.0.zip |
Contains both Master and Slave executables |
| 🐧 Linux | ModbusHub_Linux_Binaries_v0.1.0.zip |
Contains both Master and Slave executables |
Each package includes:
MasterAppandSlaveAppexecutables.- Configuration files and internal resources.
- Ready-to-run structure — no additional setup required.
📸 Screenshots
| Application | Preview |
|---|---|

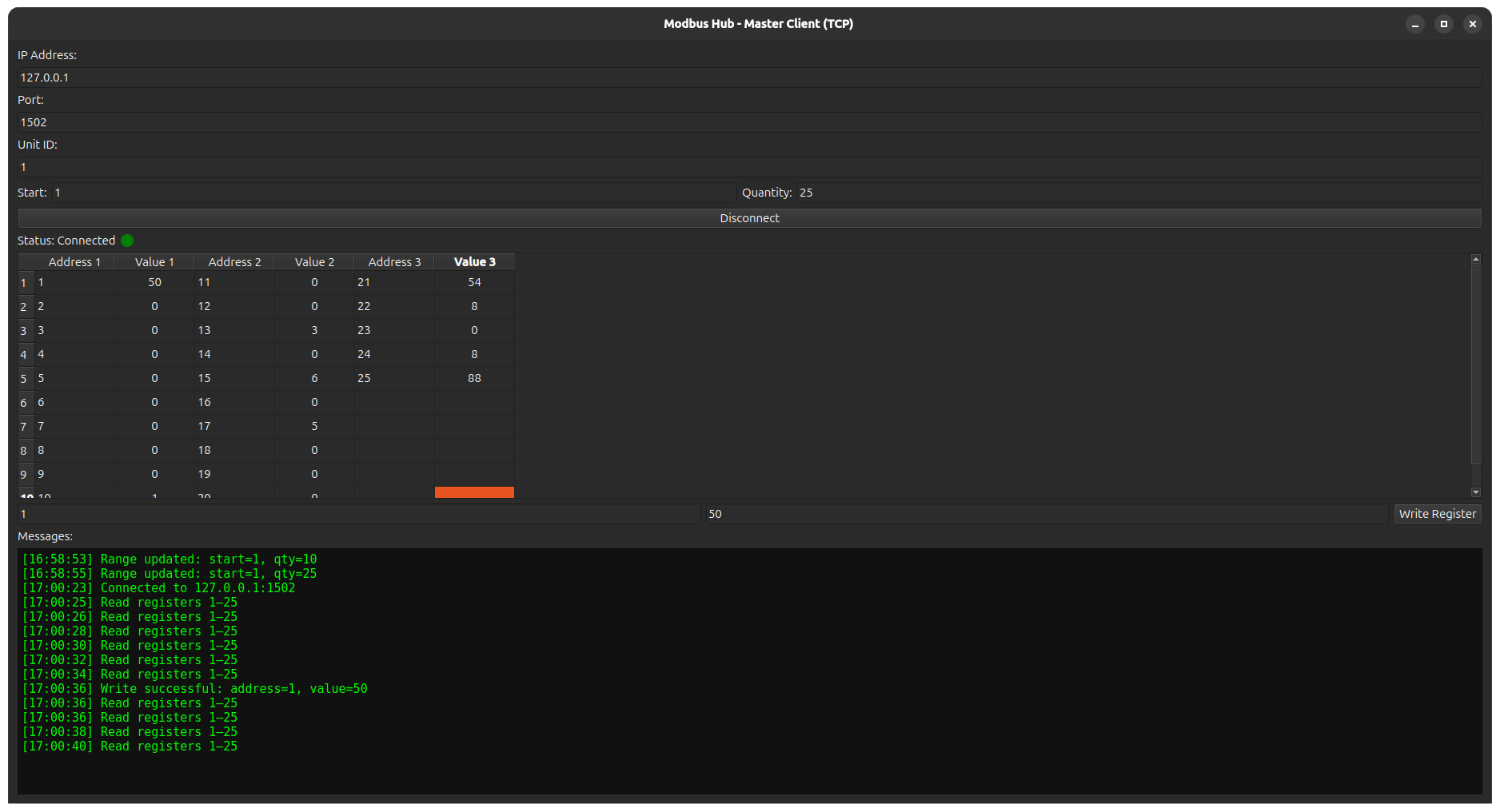

| 🟦 MasterApp (Client) |  |

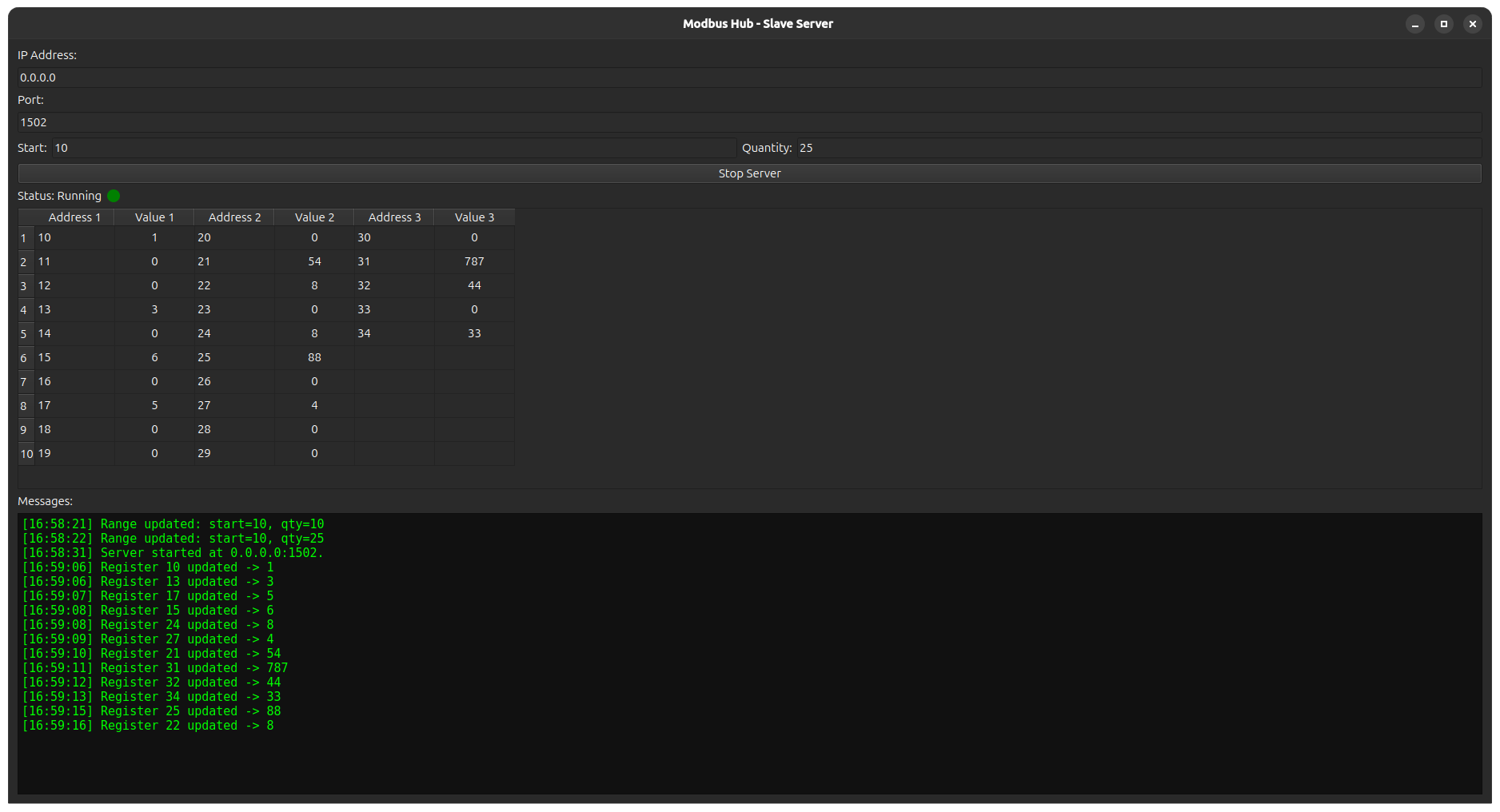

| 🟩 SlaveApp (Server) |  |
(Screenshots are for demonstration; actual UI may vary slightly depending on platform.)
📊 Register Model
| Parameter | Range / Limit |
|---|---|
| Address Space | 0 – 65535 |
| Registers per request | ≤ 125 |
| Function Codes | 03 (Read Holding), 06 (Write Single) |
| Data Type | Unsigned 16-bit integer |
🧠 Developer Notes
- Modular, documented, and educational design.
- GUI is non-blocking — uses
QTimer. - Master and Slave can run on same or separate machines.
- Ideal for testing and integration development.
📈 Roadmap
- Register type selector
- Data persistence
- Export logs to
.txt - Activity LED (blinking)
- Auto-detect local IP
- Dark/Light theme toggle
📜 License
MIT License — free for educational and commercial use with attribution.
📬 Contact
👨💻 Author: Camilo Espitia
🌐 GitHub
[ OK ] Documentation loaded successfully – Modbus Hub v1.0.0
